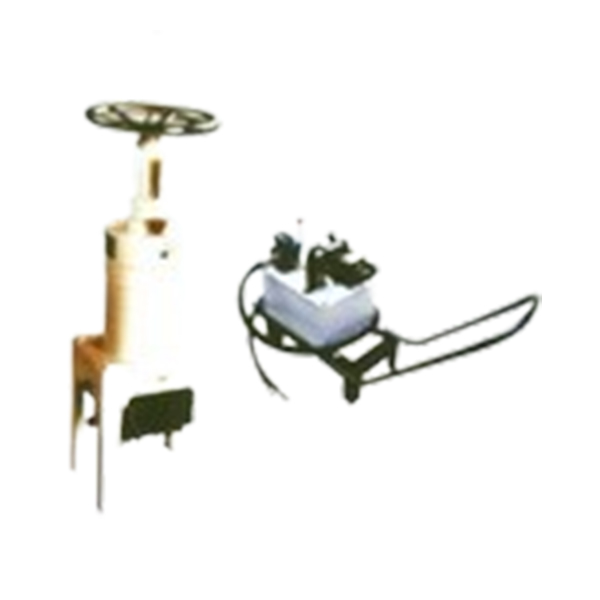

液壓操縱裝置系統主要用于遠程操作液動平面閥、液動碟閥等船用液動閥門、通常由手動液控裝置和手動泵應急小車組成、兩者既可單獨使用，又可相互配合使用，當手動液控裝置部分失靈時。將備用應急小車出油口與液控裝置應急接口相聯，仍然可對液動閥進行遠距離操作。
Hydraulic control gear is used for remote control to operate the hyrdraulic fiat valve or the hydraulic disc valve.It Contains manual hy-draulic actuator and emerqency hand pump barrow,they can be able to work alone one each
other or work together with each other.When manual hydraulic actuator is failure,one can operate the hydraulic valve remotely by connecting the oil outlet of ernerqency hende pump ba-ow with the manual hydraulic actuator.
基本參數 Parameter list
| 基本參數 Basic parameter | 手動液控裝置 Manual hydraulic actuator | 手動泵應急小車 Emergency hand pump barrow |
| Z大工作壓力 Max.working pressure | 8.0MPa | 8.0MPa |
| 工作溫度 working temperature | 0~60℃ | 0~60℃ |
| 工作介質 working medium | 液壓油 Hydraulic oil | 液壓油 Hydraulic oil |
| 有效容積 Effective capacity | 3.6L | 9L |
| 接口形式 Connecting type | 雙卡套接頭配∮8×1紫銅管 Double-sleeve joint with copper pipe | M16×1.5（軟管長度）hose length:4m |
